Product Overview

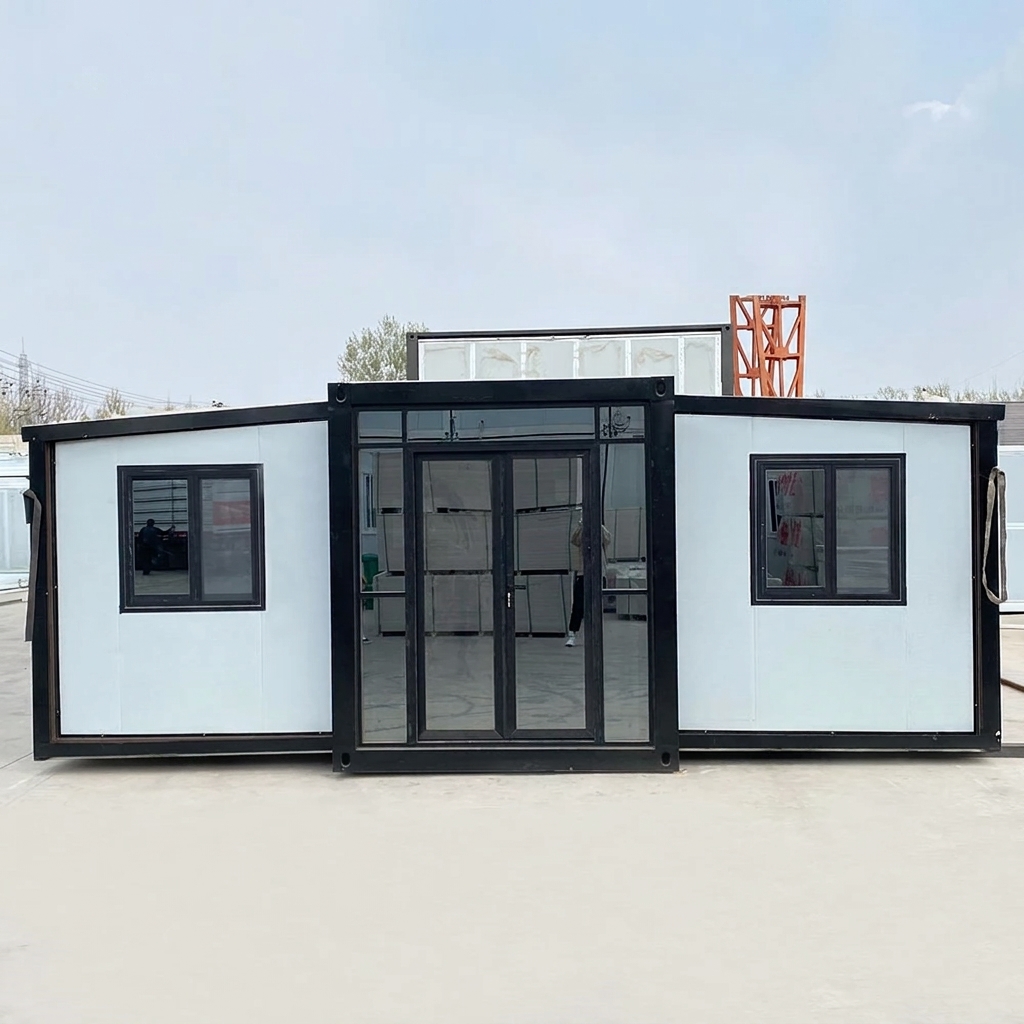

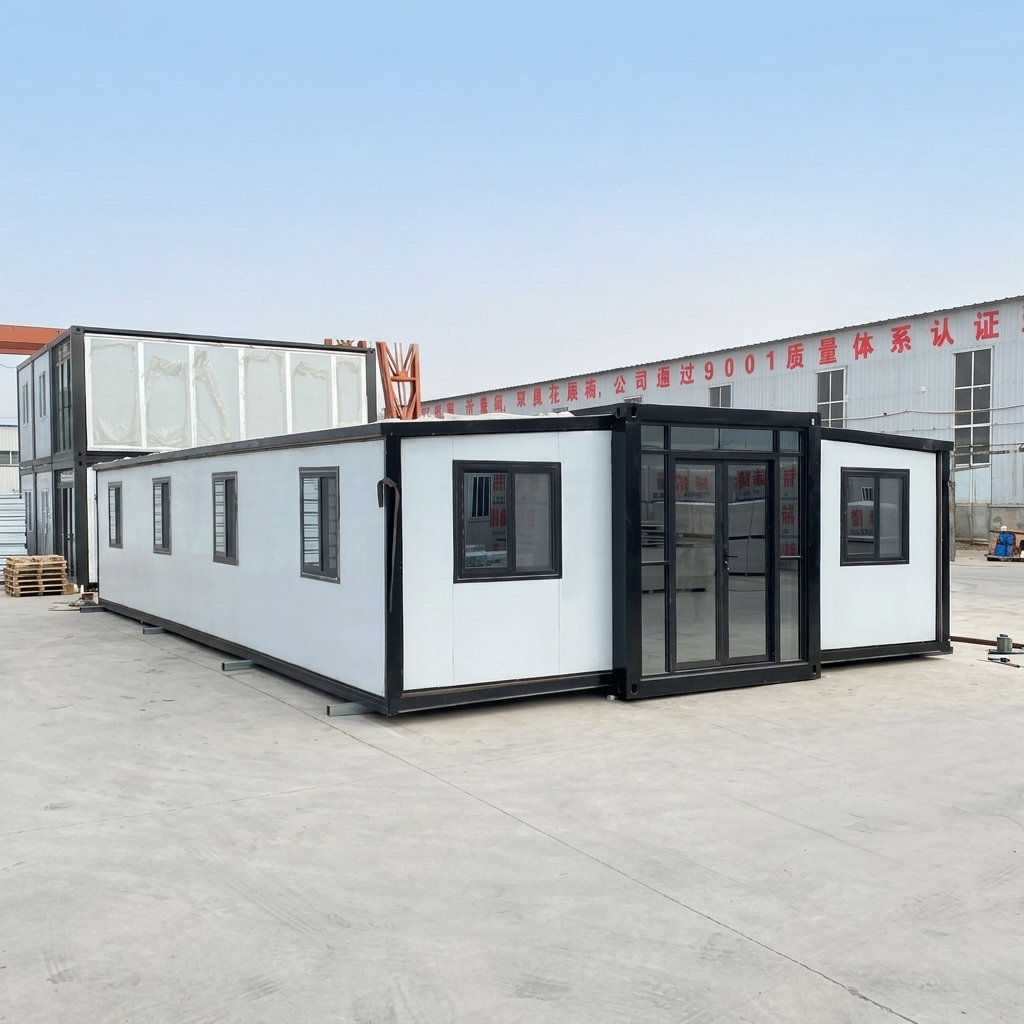

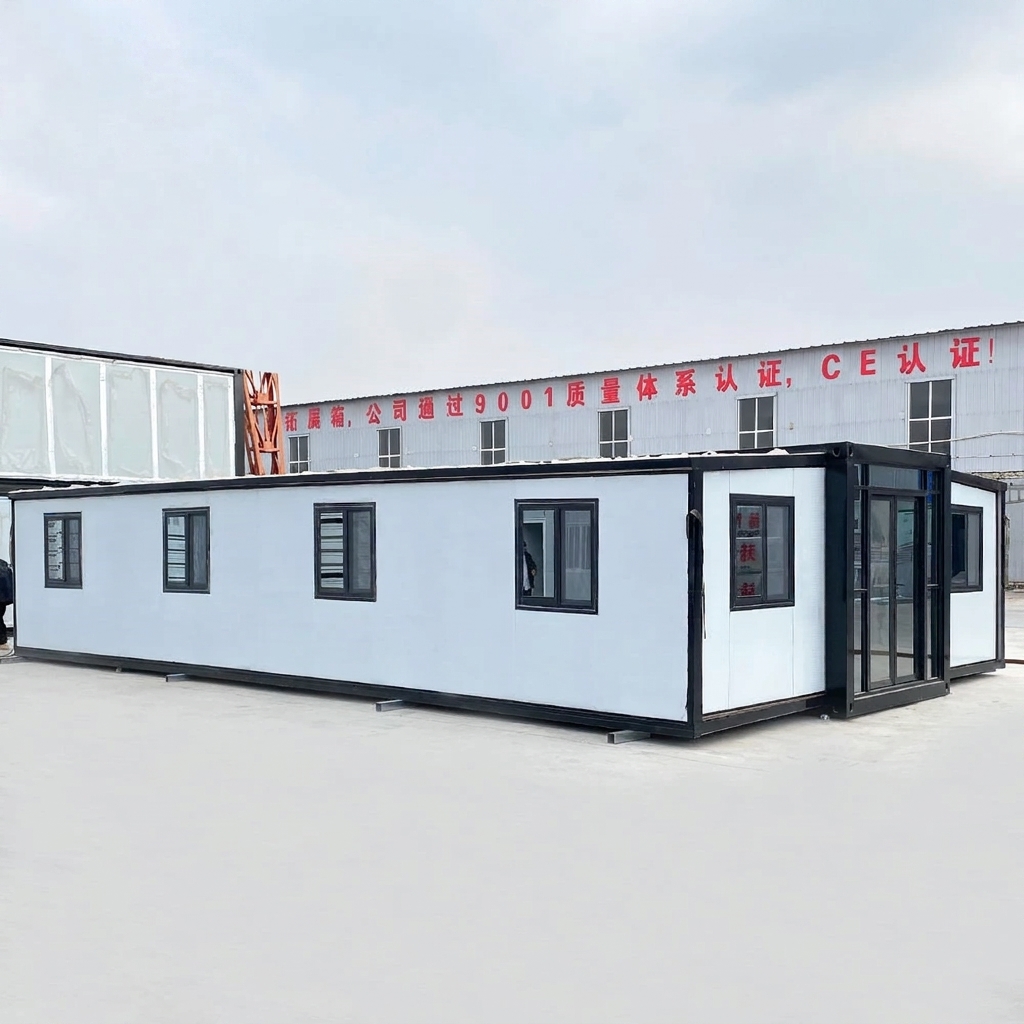

The Australian 40 Ft Expandable Container House Standard Granny Flat is designed to provide comfortable and flexible accommodation in a modern expandable structure. With a spacious 40-foot configuration, the unit can accommodate multiple rooms together with living, kitchen and bathroom areas.

The insulated construction combines a heavy-duty galvanized steel frame with insulated sandwich panels, durable doors and double-glazed tempered glass windows. The interior layout can be customized according to individual requirements, making the unit suitable for residential accommodation, granny flats, guest accommodation and other modular housing applications.

Its expandable structure allows the house to be transported in a compact folded configuration and rapidly deployed at the destination.

Key Features

• 40 Ft expandable container house
• Standard granny flat configuration
• Multi-room layout with living area
• Toilet and bathroom facilities
• 2–3 bedroom accommodation potential
• Heavy-duty galvanized steel frame
• 75 mm insulated sandwich panel construction
• Fire-resistant EPS or rock wool panels
• Double-glazed tempered glass windows
• Aluminium-frame doors
• Customizable color and layout
• Pre-wired electrical system
• Australian-standard electrical cabling
• Kitchen and bathroom provisions
• Rapid deployment system
• Designed for efficient transportation
• Suitable for residential and modular accommodation

---

Product Specifications

• Product Type: Expandable Container House
• Model: Australian 40 Ft Standard Granny Flat
• Configuration: Multi-room with living area, toilet and bathroom

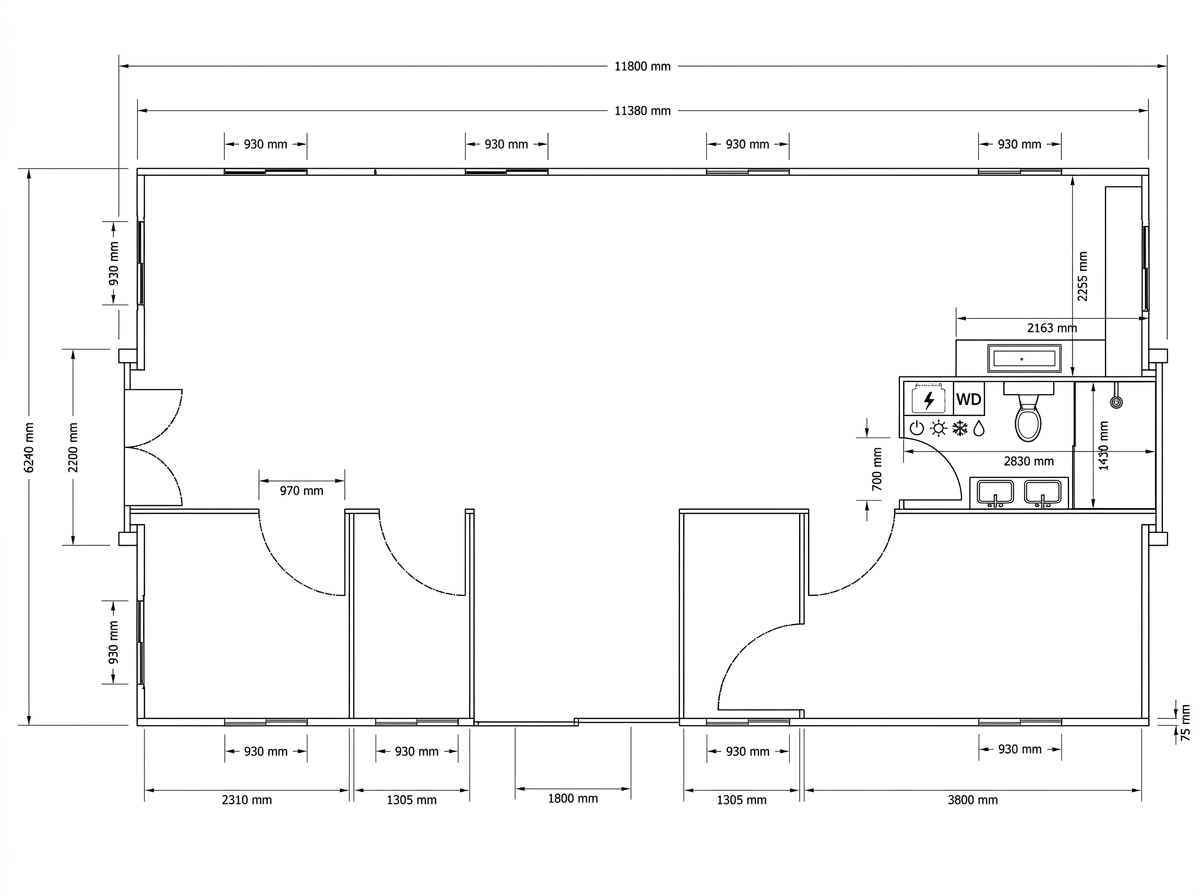

• External Dimensions: 11800 × 6540 × 2530 mm
• Folded Dimensions: 11800 × 2220 × 2530 mm
• Frame: Heavy-duty galvanized steel
• Wall/Ceiling: 75 mm insulated sandwich panels
• Roof Insulation: 75 mm fireproof EPS sandwich panel
• Flooring: Standard grey PVC flooring
• Subfloor: 18 mm fibre cement board
• Windows: Double-glazed tempered glass
• Layout: Customizable
• Color: Customizable
• Production Time: Approximately 15–30 days, depending on order volume
• Deployment: Approximately 30 minutes with a suitable deployment team

---

Features & Benefits

Waterproof & Fire Protection

• Waterproof Performance: 100%
• Fireproof Rating: Grade A

Structural Performance

• Wind Resistance: 90–110 km/h
• Seismic Resistance: Grade 10
• Sound Resistance: ≥30 dB
• Expected Lifetime: More than 30 years

Load Capacity

• Roof Live Load: 1.5 kN/m²
• Floor Live Load: 2.5 kN/m²

---

Construction Details

Roof

• External Roofing: 75 mm fireproof EPS sandwich panel
• Insulating Layer: EPS
• Internal Ceiling: 0.3 mm Type-831 ceiling plate
• Both Sides: 75 mm fireproof EPS sandwich plate

Walls & Floor

• Side, Front & Rear Wall Panels: 75 mm fireproof EPS or rock wool sandwich panel
• Internal Partition: 50 mm fireproof EPS or rock wool sandwich panel
• Middle Floor: Fire-resistant asbestos-free glass magnesium board
• Side Floor: Bamboo board

---

Rapid Deployment

The rapid deployment system is designed to allow the house to be opened and prepared efficiently. A minimum team of approximately six people can deploy the structure, with deployment possible in approximately 30 minutes.

Hydraulic or manual support can be used during the opening process, providing a convenient and efficient setup.

---

Simplified Logistics

The 40 Ft expandable container house is designed around the dimensions of a 40HQ container, making transportation and movement more convenient.

Its folded configuration allows the unit to be transported efficiently before being expanded at the destination.

---

Construction

The house uses durable materials designed for practical long-term accommodation:

• 75 mm rock wool galvanized steel sandwich panel walls and ceiling
• Heavy-duty galvanized steel frame
• Robust doors with aluminium frames
• Double-glazed tempered glass windows
• Ceiling and floor skirting board trim
• Corner trim and capping
• Standard grey PVC flooring
• 18 mm fibre cement subfloor board base
• Pre-fitted subfloor structure

---

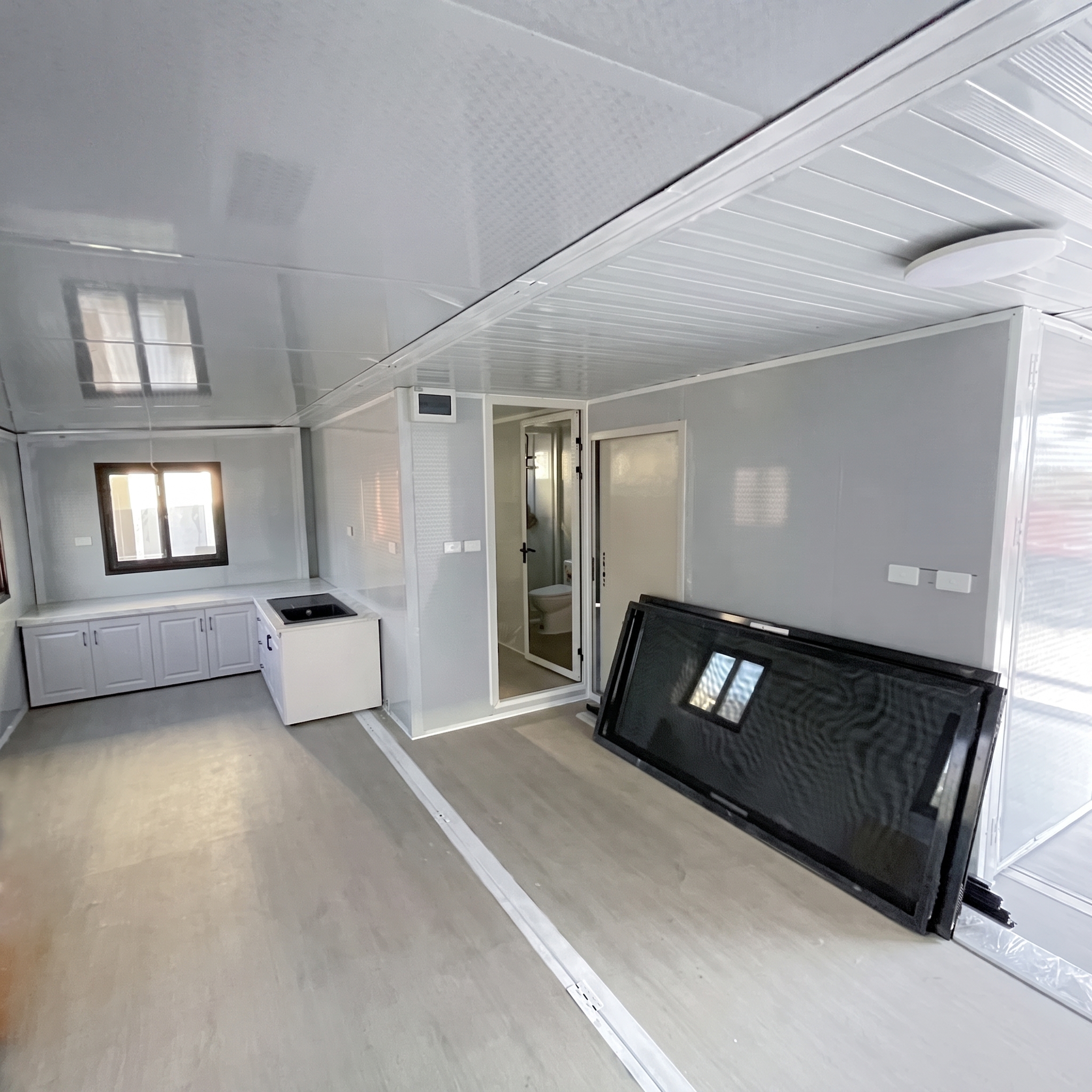

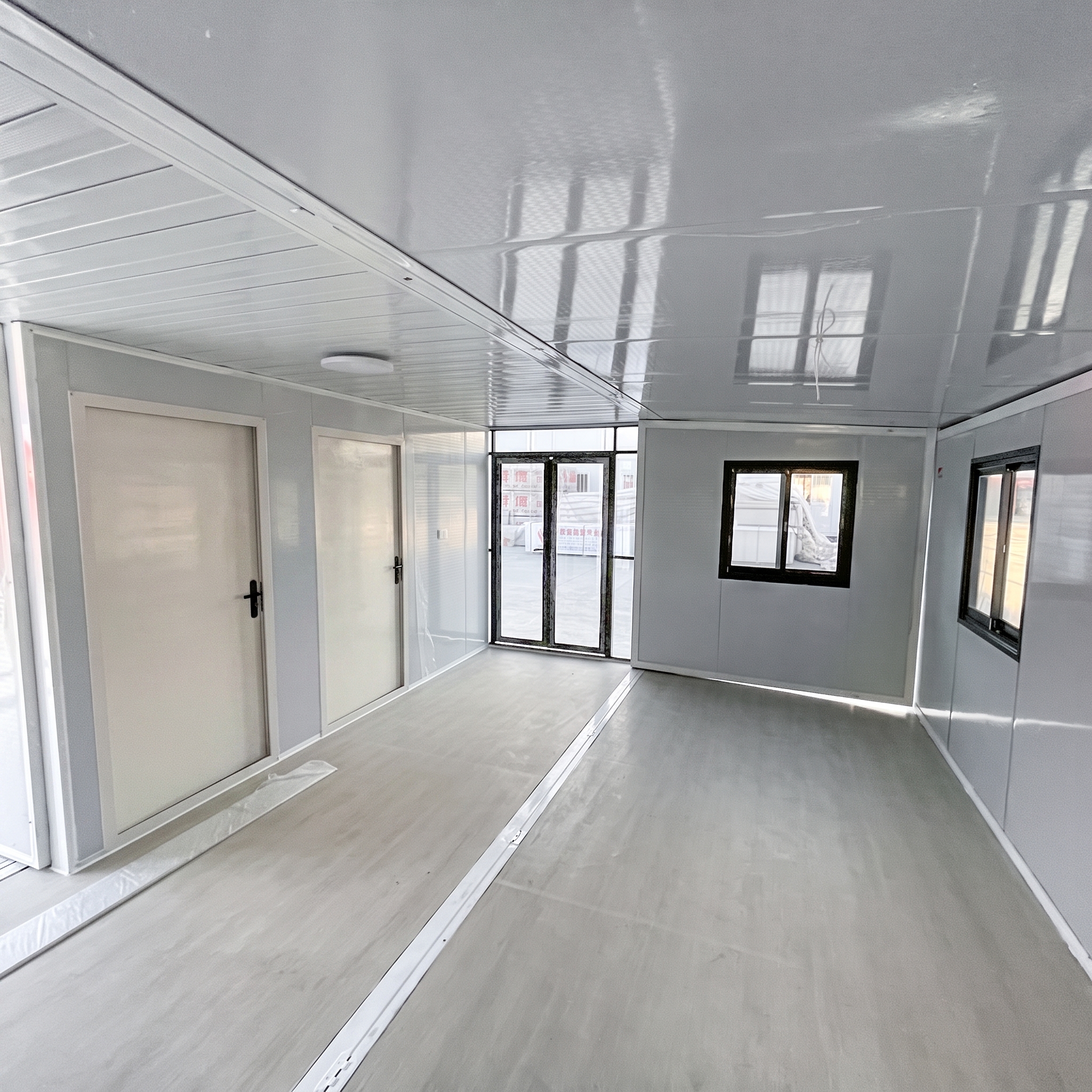

Indoor

The interior can be designed according to the customer’s requirements, allowing the available space to be configured for different living arrangements.

Possible spaces include:

• Bedrooms
• Living room
• Study
• Kitchen
• Bathroom
• Toilet
• Entertainment room
• Flexible workspace

The electrical system can include:

• Pre-wired electrical outlets
• Pre-fitted switches
• Bedroom power connections
• Bathroom electrical connections
• Kitchen electrical connections
• Living-area power connections
• Dedicated power for kitchen appliances
• Dedicated power for electric hot water
• Dedicated power for air conditioning
• Australian-standard electrical cabling
• 50A rear input with waterproof connector
• Round LED ceiling lights with pre-fitted switches

---

Kitchen & Plumbing

The kitchen can be equipped with:

• Kitchen cabinetry
• Stone benchtops
• Storage cupboards
• Sink
• Partly assembled kitchen components

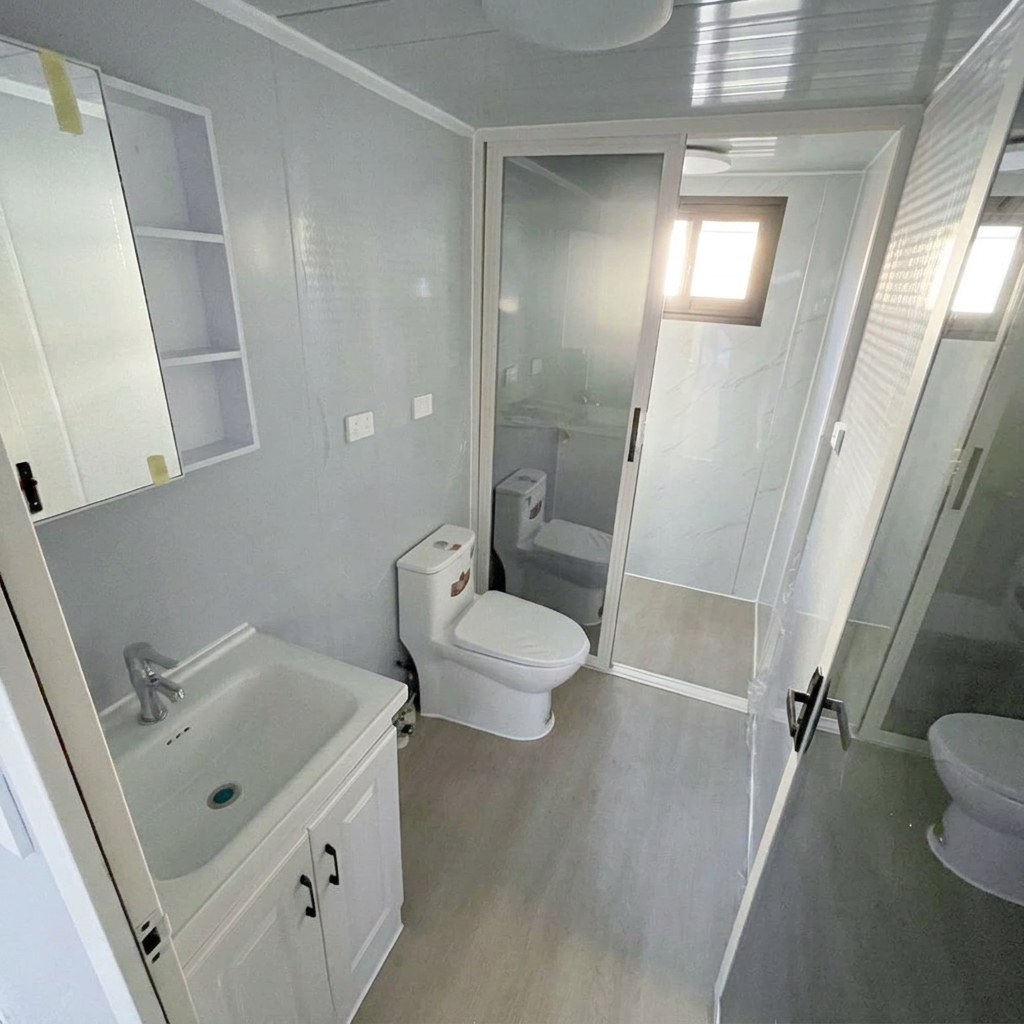

The bathroom can include:

• Shower
• Toilet
• Wash basin
• Washing-machine space
• Mirror
• Vanity cupboard
• Dark wood-grain PVC floor finish

The plumbing system includes:

• Pre-fitted hot and cold water inlets
• Kitchen sink connection
• Bathroom basin connection
• Toilet connection
• Shower connection
• Plumbing fittings and taps
• Shower fixtures
• WaterMark-certified plumbing fixtures
• Separate drainage pipes for wastewater and grey water

---

Transport & Delivery

The expandable house can be transported internationally according to the customer’s requirements.

Customers can use their own freight forwarder or arrange transportation through an available forwarding service. The units can be carefully loaded for transportation to help minimize the risk of damage during shipping.

Installation services are not currently included, but technical support can be provided to assist with deployment and installation.

---

Customization

The Australian 40 Ft Expandable Container House can be customized according to project requirements, including:

• Interior layout
• Number and arrangement of rooms
• Bedroom configuration
• Kitchen arrangement
• Bathroom arrangement
• Exterior color
• Flooring
• Electrical configuration
• Plumbing configuration
• Doors and windows
• Interior finishes

Its spacious expandable design and flexible configuration make it suitable for granny flats, family accommodation, guest houses, residential units, temporary accommodation and other modular housing applications.
